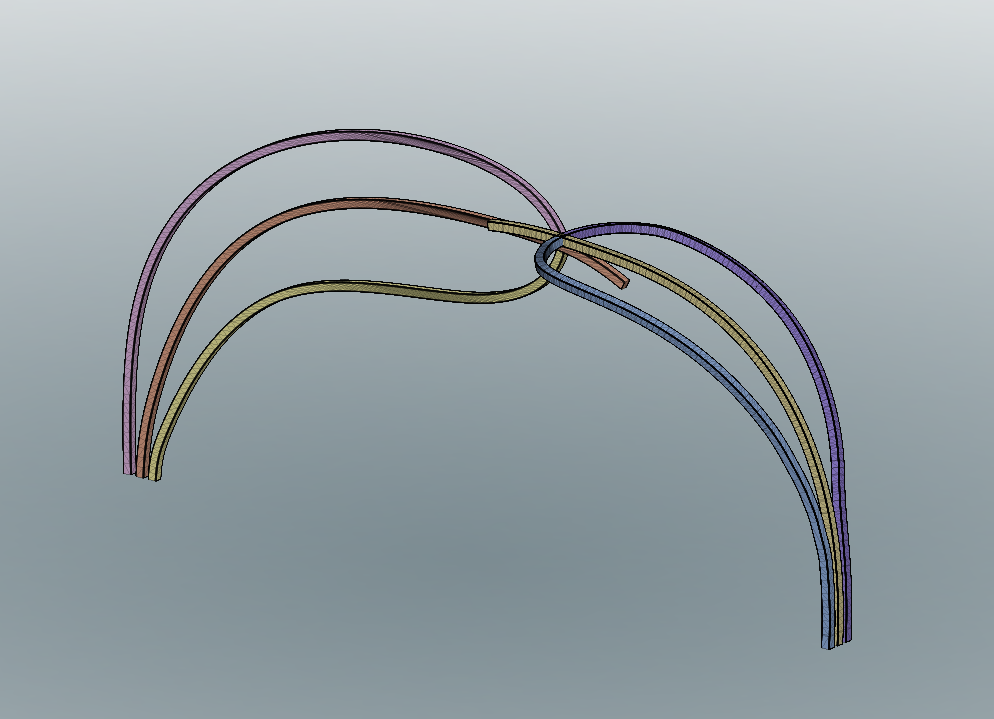

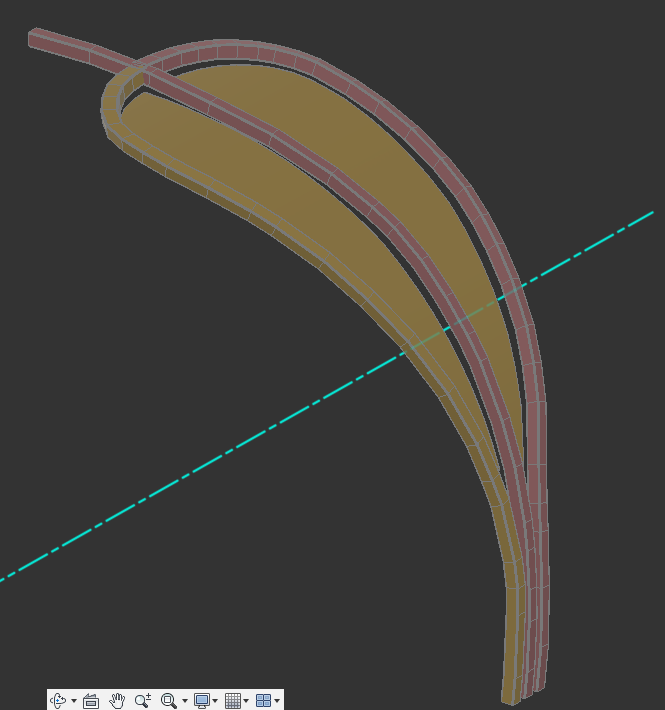

June Sekiguchi hired me to design and create files for manufacturing her arch that was installed at an apartment complex in Redmond, WA. The arch is an entrance to an art-walk/ courtyard on The Piper campus. The sculpture represents two leaves intersecting with an array of butterfly eggs set in the negative spaces. The frame is made of structural tube steel and the panels are made of laser cut sheet stock.

Scope of Work:

• Create 3D models.

• Calculate material quantities.

• Generate drawings and manufacturing files.

• Work with suppliers and vendors.
